Payment & Shipping Terms:
|Laser Source:||1000-6000W||Laser Brand:||IPG|
|Pipe Length:||6-12 M||Pipe Thickness:||1-20 Mm|
|Pipe Diameters:||20-360mm||CNC Or Not:||Yes|
10KW Tube Profile Cutting Machine,
Tube Profile Cutting Machine 6000mm,
360mm Square Tube cutting Machine

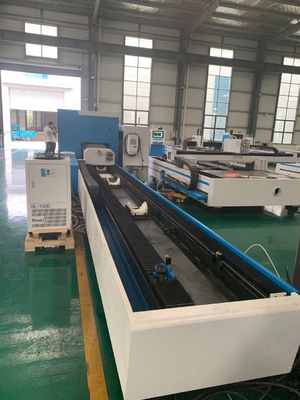

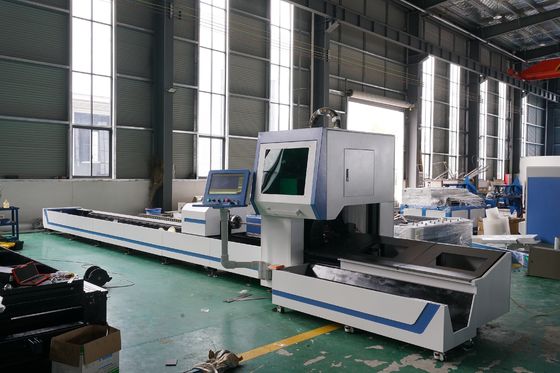

Laser Tube Cutting Machine For Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangl
Laser pipe cutting machine incorporates space saving design and ease of use. Its high cutting speed and very low operating cost makes the most affordable system on the market. The light weight motion system allows excellent positioning accuracy while maintaining cutting speeds that are the highest in its class.
The application is for cutting Mild Steel pipe, Stainless Steel pipe, Aluminium Alloy pipe, copper pipe, Brass pipe ( Square pipe, Round pipe, Rectangular pipe, C Channel, H Channel ), etc.,
|Cutting Head||Raytools / Precitec|
|Bundle / Single Loading||Fully-Automatic|
|Min. Loading||2000 mm|
|Loading Capacity||3 Ton|
|Rapid Speed||100 m / min|
|Repositioning Accuracy||≤ ± 0.03 mm|
|Rotary Diameter||160/220/320 mm|
Fitness equipment, sporting goods, petroleum pipelines, construction machinery, passenger car manufacturing, Locomotive manufacturing, agriculture and forestry machinery, special vehicles, households appliances manufacturing, laser external processing services and other machinery manufacturing pipe process industry.
Auto feed enable for perfect slicing of the job.
Finished job command offer to cut pipes without wastage.
Cut cross section to slice the pipe in desired location and also reduce the waste to minimal amount.
Hiding a layer enable to reduce lower number of outer slice
Pneumatic or electric job holding provide proper position of the pipe in 3 Dimensions. Tube types Round, Oval & Rectangular
Efficient cutting of square and rectangular section with a slide way mounted cutting head.
Low noise levels and the very best cut quality.
The optimum working parameters for the best possible machine performance.
The material feed system and vice geometry assure the most positive clamping of the material during the cutting cycle whether the material is thin wall delicate tube or tough thick wall tube.
During the material feeding process, the material is lifted away from the vice bed and vice jaws to prevent the material surface being marked or scratched.
Cutting line has been designed to operate either as stand alone system or fully integrated in a complete automatic line controlled by one CNC programming unit.
