Place of Origin: | China |
Brand Name: | YUAN |
Certification: | CE,ISO,UV |
Model Number: | 6020 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 10000-90000 USD |
Packaging Details: | wooden box |
Delivery Time: | 25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets |
Name: | Bevel Tube Fiber Laser Cutting Machine | Power: | 1000 – 6000 Watts Range |
---|---|---|---|
Round Tube Diameter: | Φ20mm-220mm | Square Tube Length: | 15*15mm-150*150mm |
Tag1: | Laser Bevel Tube Cutting Machine | Tag2: | Bevel Tube Laser Cutting Machine |
High Light: | Bevel CNC Tube Laser Cutting Machine,6020 CNC Tube Laser Cutting Machine,2kw laser cutting machine |

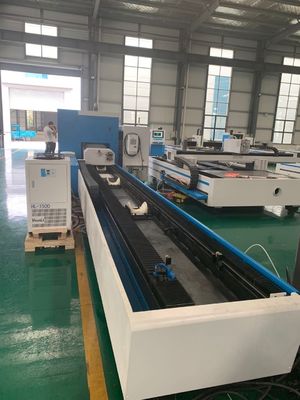

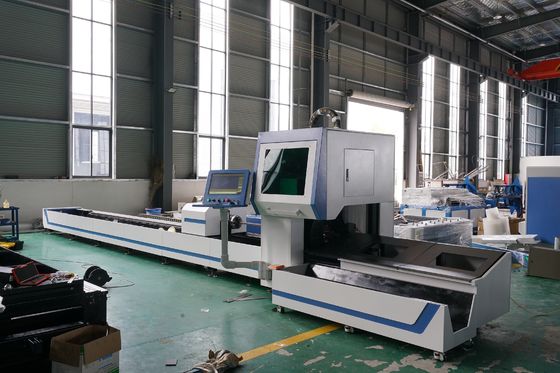

Bevel Tube Fiber Laser Cutting Machine 6020 Cut A Variety of Tubes
The Laser bevel tube cutting machine has superior performance, which can realize the bevel cutting of the pipe within the range of ±45°. It is equipped with 3D laser cutting head, which can easily cut H steel, I-beam, angle steel, channel steel and other profiles, as well as drop-shaped and concave shaped tubes. Compared with domestic pipe cutting machines of the same level, the processing range expand by 12%.
Parameters:
Model | Bevel Tube Fiber Laser Cutting Machine 6020 |
Pipe Processing Range | 6000mm* φ20~220mm (Square tube: 15*15~150*150mm) |
Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W |
Maximum Speed | 100m/min |
Maximum Rotational Speed | 100r/min |
Maximum Load Weight | 150KG |
Z -axis Travel | 220mm |
X/Y Axis positioning accuracy | ±0.05mm |
X/Y Axis repeated positioning accuracy | ±0.02mm |
Maximum Acceleration | 0.8G |
Angle of Processing Bevel | ±45° |
Maximum Single Tube Weight | 150kg |
Materials | 1KW | 1.5KW | 2KW | 3KW | 4KW | 6KW |
Carbon steel (mm) | 1-10 | 1-10 | 1-10 | 1-16 | 1-18 | 1-18 |
Stainless steel (mm) | 1-5 | 1-6 | 1-6 | 1-8 | 1-12 | 1-12 |
Aluminum (mm) | 1-4 | 1-6 | 1-8 | 1-8 |
The advantages of bevel tube laser cutting machine
1.Bevel tube laser cutting machine can complete v, x, y and other bevels at one time. The bevel processing that need to be completed by traditional cutting, milling and other multiple processes can now be completed at one time, greatly improving efficiency, ensuring quality, and saving resources.
2.Bevel tube laser cutting Machin can realize zero-clearance welding. In the subsequent splicing process, there is no need to process again, which reduces the process and greatly reduces the cost of manpower and material resources.

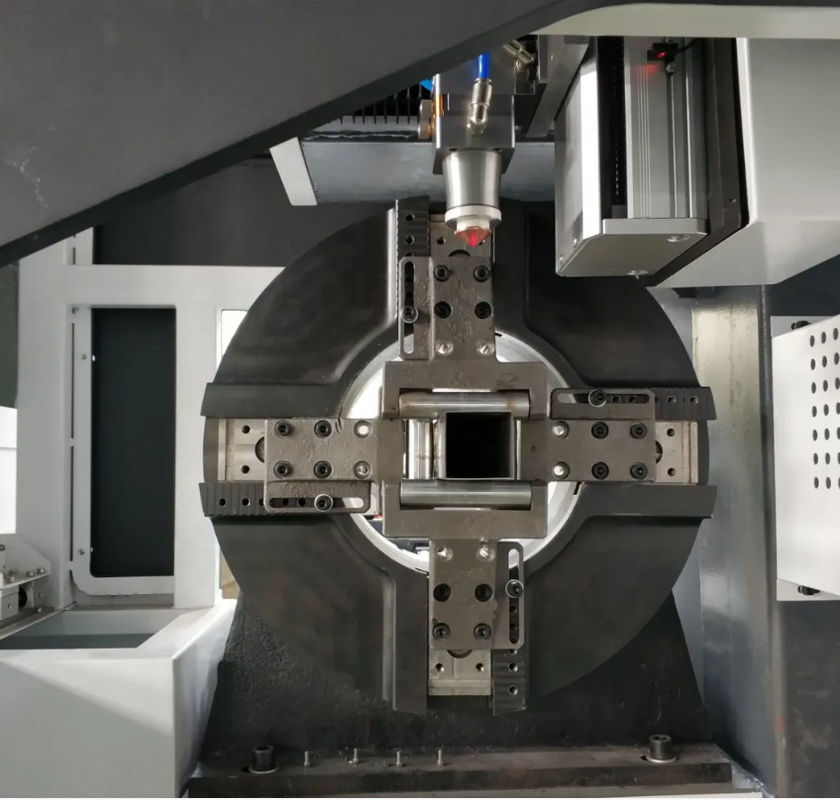

3.Bevel tube laser cutter has a 45° angle of swing cutting head, which has superior performance and can realize bevel cutting of the workpiece in the range of 0°-45°. The cutting head is dedicated for 3D cutting and has an automatic focusing function. During bevel cutting, it can automatically adjust the focus position according to the thickness and angle of the cutting material to meet the cutting process requirements.
