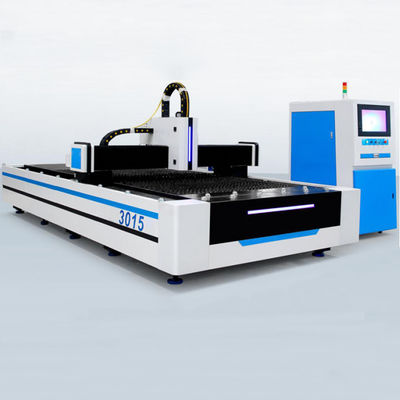

Aluminum CNC Fiber Laser Cutting Machine 10mm Metal Shape IPG Raycus

2021 new sale cnc aluminum iron stainless steel copper cut metal cutter 3015 1500w fiber laser cutting machine price

1.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
3015  fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

IPG / RAYCUS / MAX Laser Source Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

Fiber Laser Cutting Head China Worthing(WSX) brand / Swiss Raytools brand / German Precitec brand are optional. Auto focus makes cutting system more automatic. Lightweight design, fast acceleration.

Adopts steel plates-welding process, Intermittent heating and annealing process to make the machine base more stable and more durable during processing. Our machine structure life can be more than 10 years without deformation.

Guide Rail & Rack and pinoin   Guide rail: adopt Taiwan CSK precision linear guide rail Rack and pinion: the rack is made of Taiwan brand (KH), Strong bearing capacity, high precision and high rigidity.

France Schneider Servo ＆ motor The fiber laser machine adopts the imported servo system from France including servo motor and servo driver,

CYPCUT Control System   The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head

S&A or HL Chiller   High and low temperature dual control water chiller. LCD display temperature control status, high temperature water circuit is for cutting head cooling, low temperature water circuit is for laser cooling.

Application



◆Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal plate material.

◆Used for metal round, square tube, such as carbon steel, manganese steel, spring steel, stainless steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper.

◆Ultra-high type, special metal material cutting.
