Max Cutting Thickness: | 25 Mm | Shearing Angle: | 8 ° |
---|---|---|---|
Stroke: | 80mm | Punching Pressure: | 120 Ton |
High Light: | 120T Hydraulic Angle Cutting Machine,80mm Angle Steel Cutting Machine |
Hydraulic Ironworker For Pipe Notching And Punching ,Angle Steel Cutting Machine Q35Y-25 ,25mm Thickness

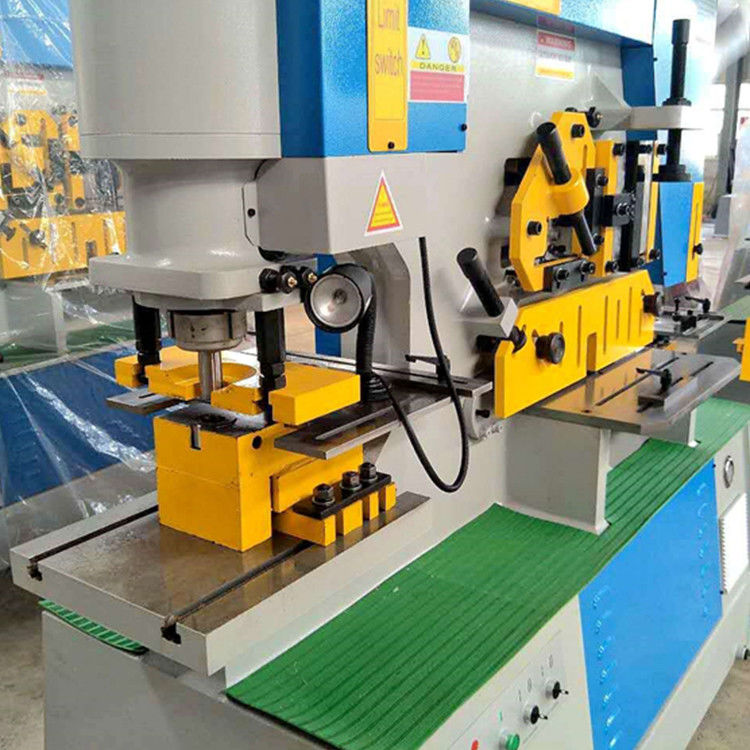

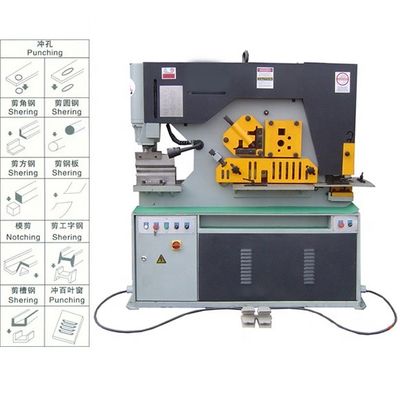

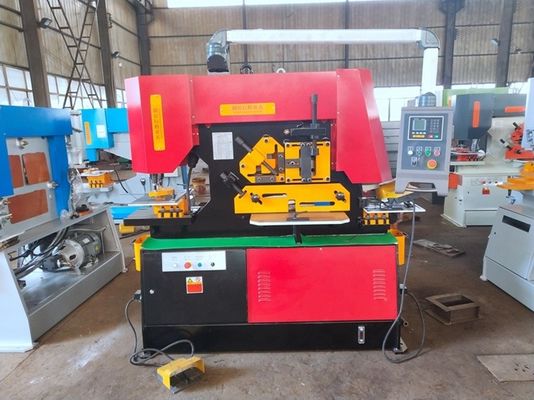

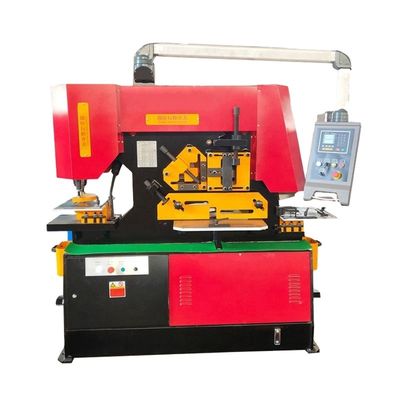

Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The hydraulic ironworker machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our hydraulic ironworker machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.
Optional tooling of hydraulic ironworker machine

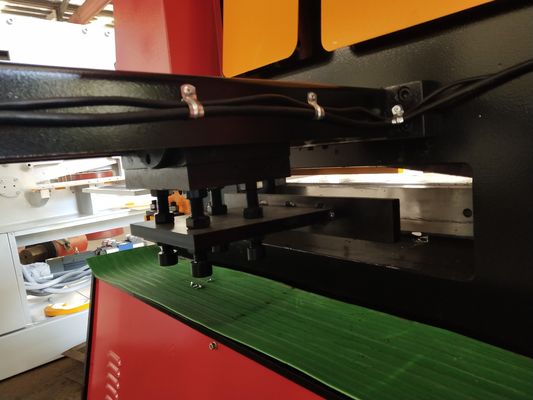

Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
Temperature cooling system: When the hydraulic ironworker machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic
Standard Components
Seal rings Japan NOK |
independent hydraulic cylinders |
Hydraulic system German Bosch Rexroth |
Gear pump Shanghai Hangfa |
Motor Siemens |
Electric components Schneider |
Large punch table with scales |
Two shielded foot controls |
Manual back gauge |
Five working stations for punching shearing notching bending |
Optional Components
Punching machine: Movable work light |
Overload protection on hydraulic system |
Electric back gauge |
Optional bending attachment |
Adjustable stroke controls with indicators on both cylinders |
Technical data
Model | Q35Y-25 |
Punching Pressure (T) | 120T |
Max. cutting thickness of sheet plates (mm) | 25 |
Material strength (N/mm²) | ≤450 |
Angle of Shear (°) | 8º |
Flat bar shearing (T×W)(mm) |
25×330 16×480 |
Max. length of cylinder stroke (mm) | 80 |
Trips frequency (times/min) | 8-18 |
Depth of throat (mm) | 400 |
Punch depth (mm) | 25 |
Max. punching diameter (mm) | 35 |
Motor power (KW) | 11 |
Overall dimensions (L×W×H)(mm) | 2355×960×2090 |
Weight (kg) | 4200 |
Visual safety protection device :Punching part equipped with a 360 degree visual rotary safety device . Punch more safe .
And also have movable feeder |
Electric :Main electric is Schneider .
Equipped with open door automatic power-off protection device , more safe . |
CNC System :CNC control , can automatic pressing material .
Automatic control switch , control the backgauge . Multi - station cnc control system. |
Automatic Backgauge :Ball screw automatic backgauge device
Scale positioning , automatic cut . Work table multi-angle engraved positioning , can cut high precision , reduce manual measurement . |
