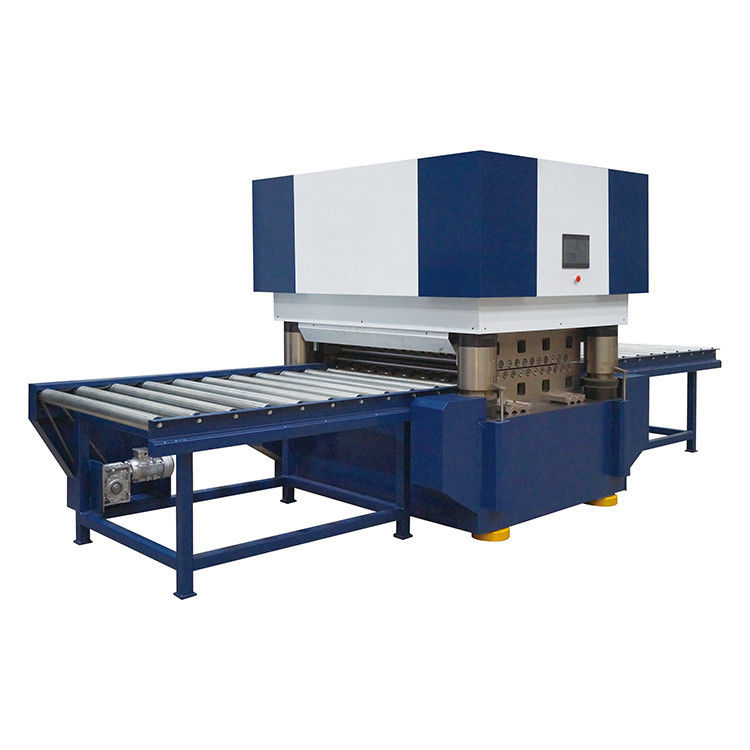

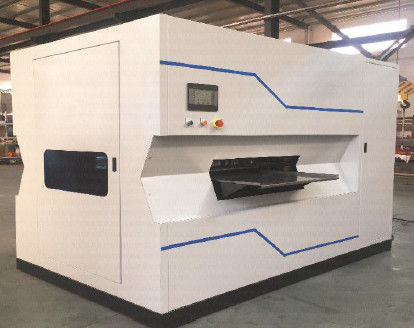

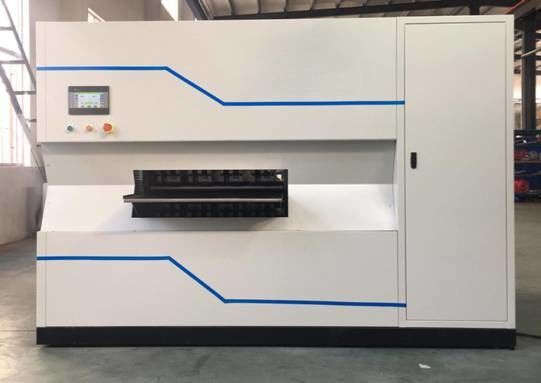

8X2100 Plate Leveling Machine CNC Sheet Metal Straightener 8mm

Plate leveler machine, Plate Straighten Machine, Leveling Machine for Stainless Steel 3mm thickness 4mm thickness

Product details

1.The machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group support rolls.

2.Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.

3.Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.

4.Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.

5.Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.

6.Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.

7.Adjustment methods: manual and electrical adjustment.

8.Lubrication methods: mainly focus on lubrication operated by manual or electric pump.

9.Applications: applicable for general leveling for carbon steel plate, stainless steel plate.

10.We can design and produce for special requirements.

Quality assurance:
metal sheet board plate straightener straightening machine device equipment

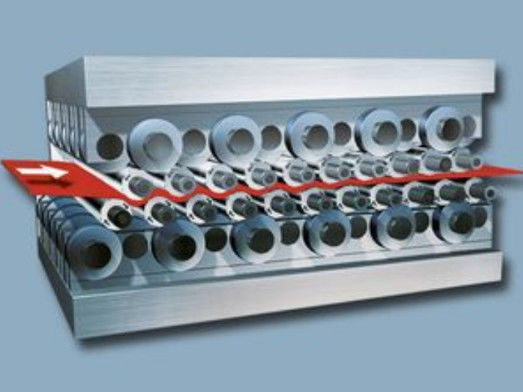

1. this machine is four high, four fold structure for thick material leveling flattening straightening
2. the high flatness tolerance can meet the demad for flatness tolerance requirements
3. If you have high requirements for flatness, please choose this structure for thick boards
heavy frame welded by qualified steel of big thickness
every machine must under testing before shipping

Parameters
