|Name:||NC 4 High Leveling Machine||Min Thickness:||0.3 Mm|
|Max Thickness:||2 Mm||Width:||200 Mm,400mm,600mm|
|Roller Diameters:||30 Mm||Roller No:||19|
High Roller Plate Leveling Machine,
Servo Motors Plate Leveling Machine,
2.0mm Thickness Roller Leveling Machine

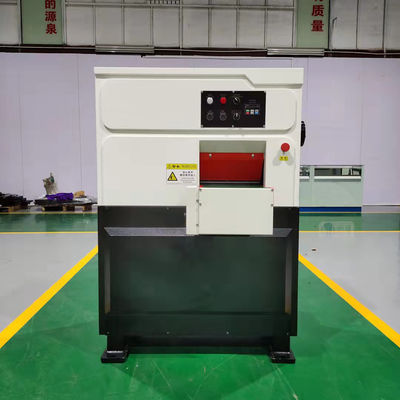

It's FULL automatic 4-high roller leveling machine, roller gap adjusted by electric, so operator just need to set producing data in the HMI then it can adjust leveling roller gap automatically don’t need to crank the two hand wheels to adjust leveler’s straightening performance for manual model leveler.
Material can be processed:
All kinds metal plate work-piece, such as low carbon steel, Aluminum, copper, stainless steel, high tensile steel etc. It equip with smaller leveling rollers and 4-high layer type, so it’s suitable for processing thin metal work-pieces of 0.3-2.0mm thickness.
Perforated metal sheet, lock panels, automobile and motorcycle metal accessories, stamping parts, and electrical metal parts etc.
It’s based on “Bauschinger effect”, metal sheet was repeatedly twisted to make metal fiber gradually consistent, eliminate internal stress, restore and improve the flatness of work-pieces. So as to get ready for the subsequent process such as bending, welding and other processing procedures.
Machine main feature
It's four-high roller level precious leveling machine, there are two columns backup rollers(Japan export roller bearings) uniformly distributed upper and lower leveling roller sets, making leveling rollers bears pressure in balance.. All rollers were well processed to ensure leveling accuracy.
It equip with 19pcs×φ30mm leveling rollers(upper 9ps/lower 10pcs), all leveling rollers adopt high quality bearing steel, finished quenching and tempering, precious machining, hard chrome plating, grinding etc. Surface hardness comes HRC58±2°(chrome layer thickness ≥0.05mm)
All gears adopt material of 20CrMnTi, finished forging, tempering, surface carburization, precious grinding etc. coming to grade IT6.
Main bearings are Shielded and sealed NSK bearing made in JAPAN, it can well reserve itself stocked lubrication oil and prevent dust enters, so it doesn’t need to add lubrication oil on bearings.
Roller gap adjusted by electric, so operator just need to set producing data in the HMI then it can adjust leveling roller gap automatically don’t need to crank the two hand wheels to adjust leveler’s straightening performance for manual model leveler.
Main power transmission method: AC motor+ speed reducer+ universal joints which is flexible connection and transmission, so it runs smoothly and low noise.
|Material Max. width||30mm|
|Leveling roller diameter||2.5mm|
|Leveling roller quantity||21pcs(Upper 10pcs/Lower 11pcs)|
|Min. work-piece size||10 x 60mm|
|Leveling roller gap adjust method||Four points auto. Adjust driven by servo motors|
