Place of Origin: | China |
Brand Name: | YUAN |
Certification: | CE,ISO |
Model Number: | HSS4-3 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 7000-9000 USD |
Packaging Details: | wooden box |
Delivery Time: | 25 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 300 SETS |
Axis: | 4 | Rated Max Load: | 3 KG |
---|---|---|---|
Repeat Positioning Accuracy: | +-0.05 | Arm Length: | 400mm |
Weight: | 38KG | Model: | HSS4-3 |
High Light: | 400mm Arm Plastic Shredding Machines,Servo Motor Plastic Shredding Machines,Scara Robot CNC Shredding Machines |

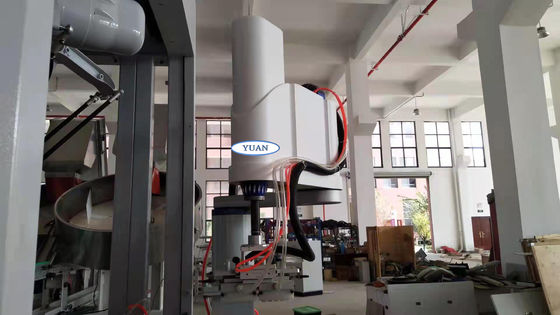

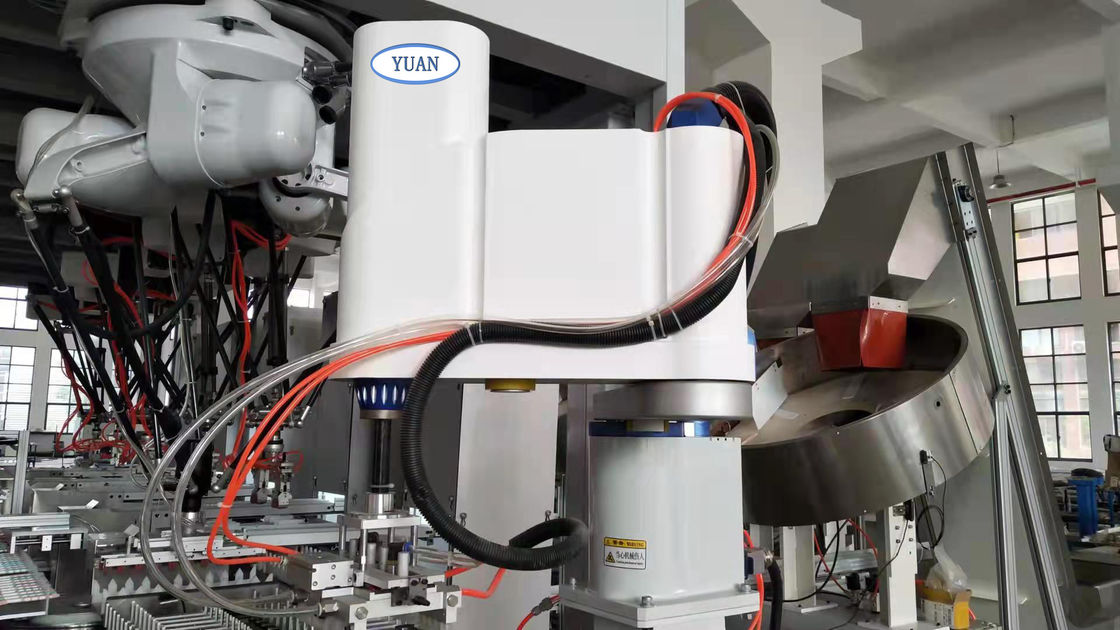

4 Axis High Speed Industrial Assembling Sorting Pick And Place Scara robot
(1) The robot body can be separated from the electrical cabinet and flexibly matched with the production line;
(2) The integrated drive control system is adopted to effectively reduce the cost;
(3) Multi Size arm span can be customized (1000mm arm span can be customized);
(4) 3-axis SCARA robot can be customized;
(5) Detachable, servo motor can be matched according to customer needs;
(6) Multiple execution ends can be customized and matched.
Parameters:
Model | HSS4-3 | HSS6-6 | HSS8-10 | |
Axis | 4 | 4 | 4 | |
Max load / Rated load | 3 KG | 6 KG | 10 KG | |
Repeat positioning accuracy | +-0.05 | +-0.05 | +-0.05 | |
J1 | 225°/sec | 225°/sec | 225°/sec | |
J2 | 360°/sec | 360°/sec | 360°/sec | |
J3 | 800mm/sec | 800mm/sec | 800mm/sec | |
J4 | 1200°/sec | 1200°/sec | 1200°/sec | |
J1 | +-160° | +-160° | +-160° | |
J2 | +-170° | +-170° | +-170° | |
J3 | 160mm | 170mm | 260mm | |
J4 | +-360° | +-360° | +-360° | |
Max arm | 400 mm | 600 mm | 8 | |
,
Application:
Assemble a computer | Automatic spare parts | Medical handling |
Up and down materail for mobile phone parts |
Punch up and down material | Grab a box to track a piece of paper |
injection molding machine | Visual sorting | chip handing |
PCB board dection | Circut board handling | screw driver |
