|Pipe Diameter:||10-40 Mm||Thickness:||0.5-3 Mm|
|Optional Diameter:||58 Mm,78 Mm||Material:||Mild Steel Pipe ,Stailness Pipe|

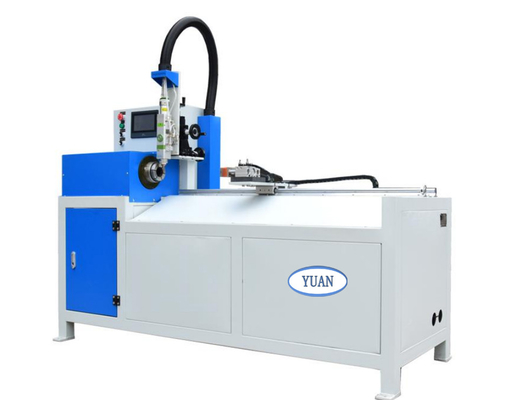

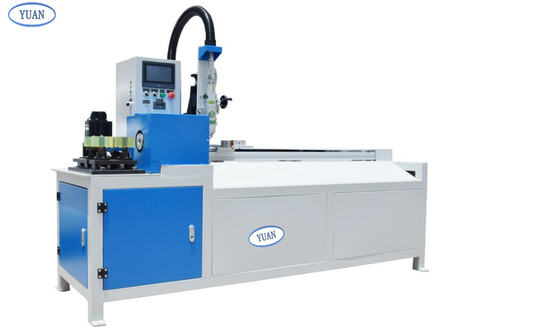

Manual Fiber Laser Pipe Cutting Machine With Manual Feeding 200mm Pipe Cutting
1.For round pipe cutting, pipe with diameter of 10mm-40mm, suitable for cutting pipe length 30-1200mm
2.cutting speed with high efficiency, cutting stainless steel pipe can
generally reach the processing capacity of 2-3 instrument vehicles, saving
labor and improving the efficiency of pipe cutting.
3. test efficiency: cutting 10mm stainless steel round tube, thickness
0.6mm, length 50mm, cutting time 0.8 seconds, an hour can cut about 3000-4000 pcs
4.easy to operate, low skill requirements for the operator, easy to operate
for all ages, only need to manually push the material, 10 minutes to learn
to get start, switching tube specifications is simple and convenient.
5. The cutting speed and productivity depend on the length of the cuttingpipe, the wall thickness of the pipe and the feeding
speed of the operator. It takes only about 1 second for the skilled worker to operate the average
cutting time (refer to the stainless steel round pipe of 0.6mm-1.0mm wall thickness).
6. Compared with other cutting machines, such as the hob cutting
machine is easy to deform, the manual saw blade is slow, the tungsten
steel saw blade will have water pollution, the saw blade has burrs and the
saw blade is relatively high. Laser cutting machine power consumption is
small, consumables (outside the electricity bill is mainly for the cutting
nozzle and protective lens can be used for about 4 weeks, the cost is very
low). Compared with the above processing equipment, it is much easier to maintain.
|Laser Power||1000W ,1500W 2000W selected (RECI brand)|
|Laser Model||Fiber Laser|
|Cutting head||Raytools brand or OSPR brand|
|Pipe Cutting Length||≤1200mm|
|Pipe Clamp Range||φ10-40mm|
0.5-2mm Carbon Steel
0.5-2mm Stainless Steel
|Laser Line Width||0.15mm|
|Cooling Way||Water Chiller|
CNC automatic laser cutter manufacturer square round ss ms gi metal iron stainless steel tube fiber laser pipe cutting machine Pipe Bending Machine ,Pipe cutting machine Burr free fully automatic cnc pipe cutting machine for thin metal iron ss stainless steel round tube For round pipe cutting:φ15-φ40mm with cutting length 30mm-1200mm
Filed: Medical Furniture,Hardware fitting,Bathroom ware, stocking rack,furniture,Automobile , Construction ,Housewares,Fitness equipment,closes hanger,stock rack.
Material:Mild steel pipe ,carbon steel pipe ,stainless steel pipe,galvanized steel pipe,aluminium pipe,mild steel tube,carbon steel tube,stainless tube,galvanized steel tube,
