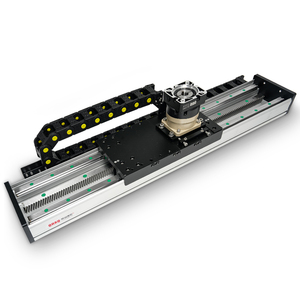

Rack & pinion linear guideway slide table stage actuator engineered for multi-axis pick-and-place and industrial high-payload automation.

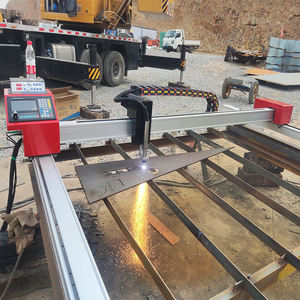

Compact 1500x3000mm metal sheet steel plate plasma cutter featuring robust stepper motion control and high cut-speed consistency.

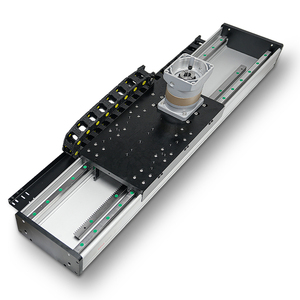

Ultra-rigidity rack and pinion linear motion slide guide rail designed for extreme load handling and long-stroke industrial positioning.

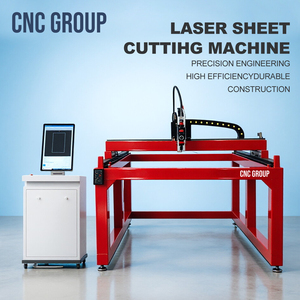

High-speed mini fiber laser cutter supporting PLT/DXF formats for stainless steel and carbon sheet metal precision fabrication.

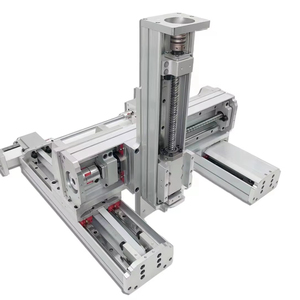

Modular multi-axis linear stage motion guide system optimized for automated assembly lines, dispensing, and vending machine mechanics.

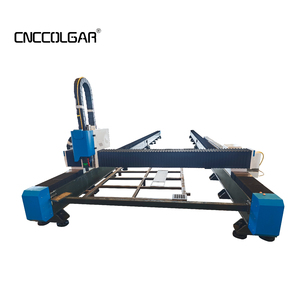

High-power industrial gantry laser cutter built for continuous 24/7 heavy steel processing with minimal heat deformation.

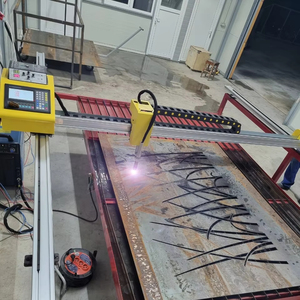

1500x3000mm effective cutting table with 200A plasma generator for high-definition edge finish on thick structural steel.

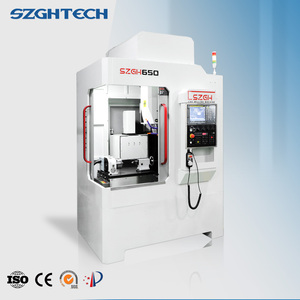

High-precision lightweight vertical metal milling machine engineered for complex mold making, aerospace components, and precise dies.
The global metal fabrication landscape has undergone a paradigm shift over the past decade. China’s wholesale gantry CNC manufacturing sector has transitioned from cost-competitive basic assembly to high-precision engineering leadership. Modern gantry CNC systems—ranging from high-power fiber laser cutters and high-definition plasma tables to multi-axis XYZ robotic modules—now match European technical benchmarks while offering unmatched production scalability and capital payback metrics.
As enterprise procurement directors and factory automation leads evaluate capital equipment, understanding the structural dynamics of gantry CNC machinery becomes vital. Gantry-style architectures offer structural superiorities that traditional cantilever or C-frame machinery cannot replicate: structural rigidity across massive cutting envelopes, equalized thermal expansion dissipation, and multi-torch or multi-tool modular integration. This industry report serves as an exhaustive buyer’s blueprint for evaluating manufacturer capabilities, technical specifications, and total cost of ownership (TCO) when sourcing wholesale gantry CNC systems directly from China factories.
Key Procurement Insight: Sourcing directly from premier Chinese OEM gantry CNC factories allows global metal fabricators to reduce capital expenditures by 40% to 60% compared to Western-branded equivalents, without compromising on critical motion components such as linear guide rails, rack-and-pinion kinematics, or CNC controllers.
The foundation of any industrial-grade gantry CNC machine—whether utilized for thermal cutting, milling, or pick-and-place automation—is its structural bed and cross-beam geometry. Advanced Chinese manufacturing facilities employ finite element analysis (FEA) to optimize gantry beams against dynamic stress, high accelerations (up to 1.5G), and continuous vibrational resonance.
To guarantee long-term operational precision without structural deflection, premier factories execute comprehensive thermal stress-relieving annealment on all welded steel structures. The process involves heating the gantry frame to 600°C–650°C in industrial annealing furnaces, followed by controlled cooling over 24 hours. This prevents micro-deformation over years of heavy industrial duty cycles. Paired with high-precision five-sided gantry milling machines, mounting surfaces for linear rails and gear racks are machined in a single setup, achieving coplanarity tolerances under 0.02mm per meter.
Full-bed annealing at 650°C eliminates internal welding stress, guaranteeing structural stability across decades of 24/7 duty.
Dual-drive AC servo motors paired with high-precision helical gear racks deliver backlash-free acceleration up to 1.5G.
Every gantry module undergoes 100% laser interferometer position calibration and ballbar testing prior to factory dispatch.
Selecting the optimal cutting or motion technology depends heavily on material thickness, target throughput, edge quality requirements, and operational budget. The matrix below outlines indicative technical capabilities for structural metal fabrication guidance:
| Process / Machine Class | Optimal Thickness Range | Max Cutting Speed | Edge Quality & Tolerance | Primary Industrial Application | Relative Operating Cost |
|---|---|---|---|---|---|
| Gantry Fiber Laser (3kW - 30kW) | 0.5mm – 25mm Sheet Metal | Up to 60 m/min | Highest; Near-machined precision (±0.03mm) | Precision sheet metal enclosures, HVAC, automotive stampings | Lowest per part on thin gauge; higher initial CAPEX |
| High-Definition Gantry Plasma (120A - 400A) | 3mm – 50mm Carbon & Stainless | Up to 6 m/min | Excellent; Minimal dross & bevel (±0.2mm) | Structural steelwork, yellow goods, heavy equipment frames | Optimal cost-efficiency on medium plate thicknesses |
| Multi-Torch Oxy-Fuel Gantry | 25mm – 300mm Heavy Plate | Up to 0.8 m/min | Good; Square cut faces on thick steel | Shipbuilding, pressure vessels, steel service centers | Lowest initial CAPEX; low gas consumable cost |
| XYZ Gantry Linear Modules (RXC Series) | N/A (Load capacity up to 250kg) | Up to 2.5 m/sec | Repeatability: ±0.01mm | Automated pick & place, dispensing, assembly lines, CNC milling | Extremely economical automated motion foundation |
As the industrial machinery landscape advances towards Industry 4.0, leading Chinese wholesale gantry CNC manufacturers are integrating cutting-edge technologies directly into standard production lines:
1. IoT-Connected CNC Controllers & Remote Diagnostics: Next-generation gantry systems feature cloud-enabled control platforms capable of real-time telemetry tracking. Facility managers can monitor torch height sensor voltage, motor torque curve anomalies, consumable burn rates, and power consumption remotely. In the event of an operational fault, factory applications engineers in China can perform remote software diagnostics, reducing facility downtime from days to minutes.
2. Eco-Friendly Zoned Downdraft Fume Extraction: Environmental compliance is no longer optional. Modern gantry plasma and laser beds incorporate segmented pneumatic downdraft chambers that open selectively only beneath the active cutting head. This concentrates exhaust suction power, reducing filtration blower energy consumption by up to 40% while ensuring 99.7% capture of toxic metal dust particles via HEPA cartridge systems.
3. Heavy-Duty Lightweight Aluminum Alloy Beams: To increase rapid traverse rates without increasing motor inertia, engineers are increasingly substituting heavy steel cross-beams with extruded aviation-grade aluminum gantries. These alloy beams maintain high torsional strength while reducing moving mass, allowing higher contouring speeds on intricate sheet metal profiles.
Sourcing high-value gantry CNC machinery requires strict supplier verification. Leading Chinese OEM manufacturing plants stand out through rigorous, auditable quality management systems that mirror global standards:
End-to-End Component Traceability: Top-tier factories avoid non-branded, generic components. Gantry linear motion guides are sourced from premium brands (such as HIWIN or PMI), electrical components rely on Schneider or Siemens architecture, and CNC controllers partner with global standards like Hypertherm EDGE Pro, FSCUT, or Syntec. Every machine is supplied with full component certification logs.
In-House Machining & Fabrication Autonomy: Unlike trading companies that outsource frame fabrication, established factories maintain their own heavy CNC machining centers, flame-cutting beds, stress-relieving ovens, and spray-painting booths. This vertically integrated manufacturing model ensures total control over frame tolerance, lead times, and structural longevity.
Rigorous Pre-Shipment Cut Testing: Prior to packing, every CNC plasma cutter, fiber laser table, or vertical machining gantry undergoes a continuous 72-hour stress test. Machines are evaluated on real metal samples to test cut accuracy, kerf taper, cornering deceleration, and height control responsiveness. Final inspection test cuts and laser interferometer measurement certificates are supplied directly to the customer prior to export container loading.
Essential Technical & Commercial Clarifications for B2B Machinery Sourcing
The choice depends primarily on your material thickness spectrum and required edge tolerance:
With high-duty power sources (such as Hypertherm XPR300/XPR400 or heavy-duty 200A-400A Chinese industrial plasma power supplies), gantry plasma cutters can reliably production-pierce mild steel up to 45mm-50mm, and perform edge starting cuts up to 80mm. For plates exceeding 50mm, combining plasma and oxy-fuel torches on the same gantry beam provides maximum operational flexibility.
Comprehensive global support is delivered through a multi-layer service structure: direct remote CNC software diagnostics via Ethernet connection, video-assisted technician guidance, comprehensive English documentation, and fast international courier dispatch for spare parts and consumable wear items. Local field engineering services can also be dispatched for site commissioning and operator training.
Yes. All professional gantry cutting beds are engineered with integrated multi-zone downdraft ducting. Matching industrial pulse-jet cartridge fume collectors are sized based on table surface area and generator power to ensure your factory floor complies with international workplace air quality standards from day one.
Machines are custom-wired to match your destination factory grid standards (e.g., 380V 50Hz 3-Phase, 415V 50Hz, or 220V/480V 60Hz 3-Phase). Control systems accept standard G-code, NC files, DXF, and PLT vector inputs generated by industry-standard nesting packages such as StarCam, FastCAM, SheetCAM, or CypCut.
