Donaldson Ultra-Web® Nanofiber Tech
Proprietary nanofiber media captures microscopic sub-micron particles on the outer filter surface, enabling superior pulse-cleaning release, lower pressure drops, and up to 2x longer filter cartridge life.
Engineered Workshop Protection
High-Efficiency Extraction for CNC Plasma & Laser Cutters
Thermal cutting processes generates hazardous, microscopic metal dust, toxic gases, and sub-micron smoke. Protecting workshop technicians and preserving CNC drive components requires powerful, continuous industrial air filtration.

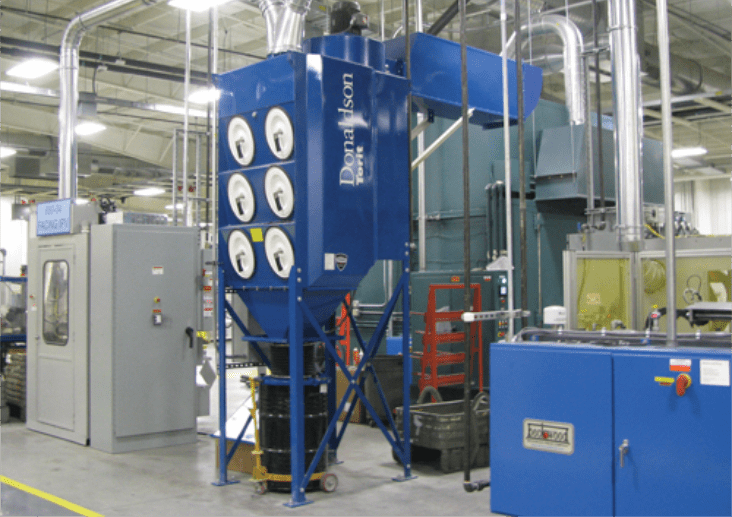

Esprit Automation partners exclusively with Donaldson Torit — the world’s leading industrial air filtration manufacturer with over 100 years of filtration engineering. Together with our custom-built zoned downdraught extraction tables, we provide fully warranted, turnkey air quality solutions tailored for metal fabricators and steel service centres worldwide.
Whether processing mild steel, stainless steel (containing hazardous hexavalent chromium and nickel fumes), or high-reflectivity aluminium plate, our integrated filtration cells keep your workshop environment fully compliant with strict international workplace health and safety exposure regulations.
Why Choose Donaldson Filtration with Esprit CNC Machinery
Uncompromising extraction efficiency designed for demanding multi-shift metal cutting facilities.
HSE & OSHA Regulatory Compliance
Every unit meets UK Health & Safety Executive (HSE) and global workplace exposure limits. Crucial for capturing carcinogenic fumes generated during stainless steel and alloy plate cutting.
Automated Reverse-Pulse Jet Cleaning
Intelligent control panels utilize automated compressed air pulses to clear filter media while the machine is actively cutting, ensuring consistent airflow without interrupting continuous production.
How Zoned Extraction and Filtration Works

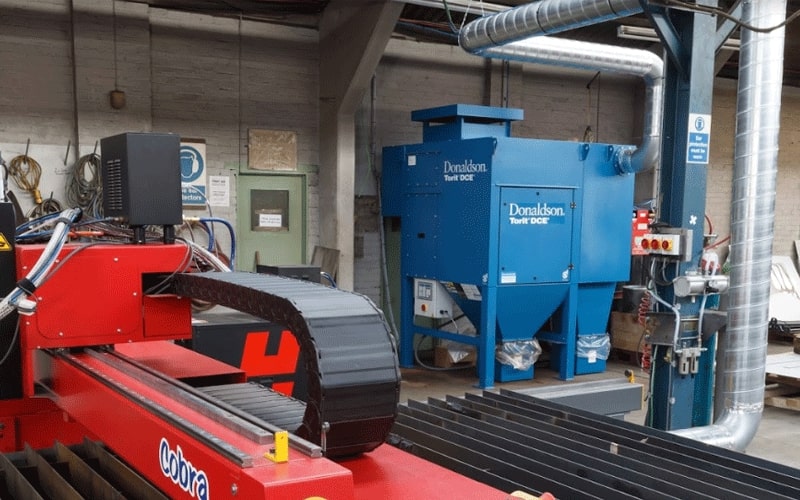

By pairing Esprit's pneumatic zoned cutting tables with Donaldson dust collectors, total power consumption and ducting losses are drastically reduced.
01
Zoned Capture

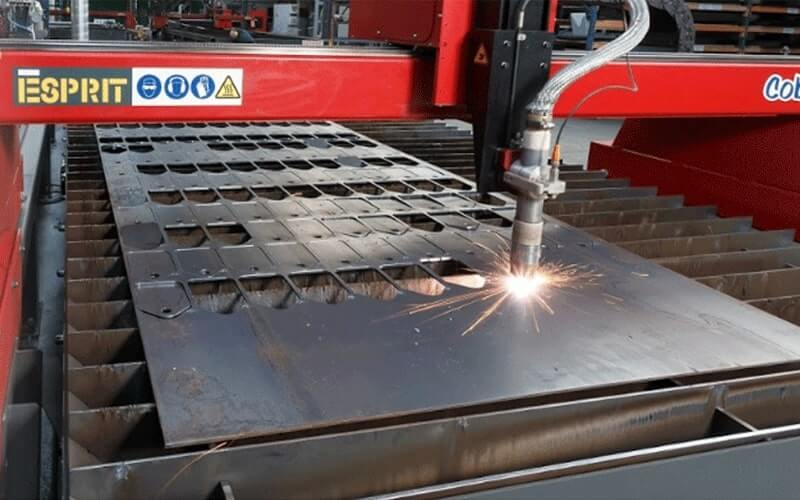

Mechanical dampers beneath the cutting bed open pneumatically only in the active cutting zone, concentrating maximum vacuum directly at the torch tip.
02
Heavy Ducting
Smoke, heavy slag particulates, and thermal gases are drawn at high velocity through heavy-gauge metal ductwork equipped with inline spark arrestors.
03
Surface Filtration
Fume-laden air passes through fire-retardant Ultra-Web® cartridge filters, trapping 99.99% of airborne particles down to 0.5 microns on the outer shell.
04
Pulse-Jet Collection
Automated reverse compressed air pulses dislodge accumulated dust cake into a sealed dust collection hopper located at the base of the collector unit for safe disposal.
Industrial Filtration System Technical Reference
Matching total airflow capacity, cartridge configuration, and fan sizing to your exact plate cutting dimensions and power source amperage.
| Filtration Series | Recommended Table Size | Nominal Airflow | Filter Cartridge Type | Installation Options |
|---|---|---|---|---|
| Donaldson DFE 2-4 | Sheet Metal / 3.0 m x 1.5 m | 2,500 – 4,000 m³/h | 2 x Ultra-Web® Flame Retardant Cartridges | Compact Indoor Footprint |
| Donaldson DFPRO 4 | Standard Plate / 4.0 m x 2.0 m | 4,500 – 6,500 m³/h | 4 x Oval High-Capacity Filters | Indoor or Outdoor Weather-proofed |
| Donaldson DFPRO 6 | Heavy Production / 6.0 m x 2.5 m | 6,500 – 9,000 m³/h | 6 x Oval High-Capacity Filters | Outdoor Silenced Enclosure |
| Donaldson DFPRO 8+ | Multi-Torch & Tandem Tables (12m+) | 10,000 – 16,000+ m³/h | 8 to 16 x Modular Ultra-Web® Elements | Centralized Factory Extraction Hall |
Workplace Safety & Clean Air Compliance
Mitigating Thermal Metal Cutting Fume Hazards
Thermal cutting processes produce hazardous contaminants that pose severe health risks if not captured efficiently at the source:
- Stainless Steel Fumes: Contains toxic Hexavalent Chromium Cr(VI) and Nickel oxides requiring HEPA-level filtration efficiency.
- Mild Steel Processing: Generates high volumes of iron oxide dust that settle on electronic linear encoders and drive systems if left uncollected.
- Galvanised & Aluminium Plate: Produces zinc oxide fumes and light metal dust requiring spark traps and explosion-proof relief panels.
Our engineered solutions provide complete peace of mind, backed by spare parts stock held in Nottingham for immediate global export and rapid dispatch.
Fume Extraction & Filtration Questions Answered
Thermal cutting of metal generates fine, respirable sub-micron dust and dangerous hazardous gases (such as hexavalent chromium when cutting stainless steel or ozone and manganese). Effective extraction protects operator health, preserves optical and mechanical machine parts, ensures compliance with international HSE and OSHA exposure limits, and maintains a clean, safe production line.
Extraction capacity is calculated based on table dimensions, torch cutting power (amperage or laser wattage), material type, and table sectioning. Esprit utilizes multi-zone pneumatic downdraught extraction tables that activate suction only directly beneath the active torch area, significantly reducing required fan power, airflow requirements, and heating losses.

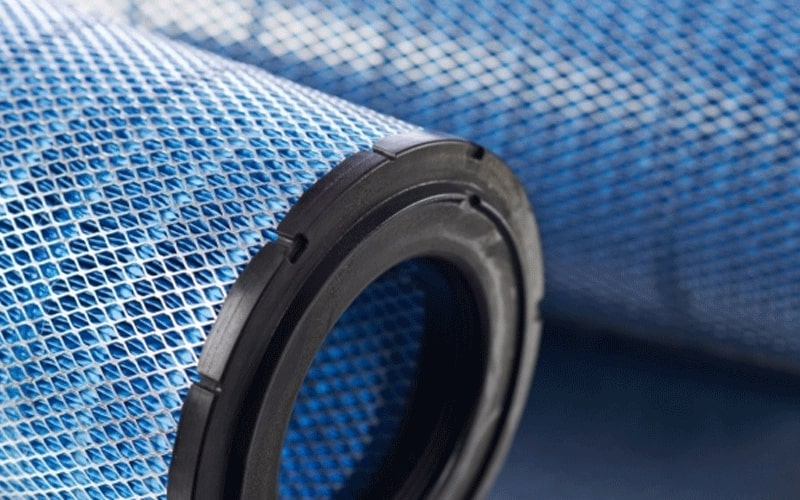

We specify proprietary Donaldson Ultra-Web® nanofiber filter cartridges equipped with flame-retardant substrates. Nanofiber technology captures sub-micron airborne dust particles on the filter surface rather than inside the depth of the media, enabling highly efficient automatic pulse-jet cleaning and substantially extending filter cartridge service life.
Yes. Donaldson filtration units can be configured for indoor operation or weather-proofed with outdoor rain covers, insulation, and spark trap ducting for external installation to conserve valuable factory floor space.
Under typical single-shift operation, Donaldson Ultra-Web® filter elements last between 12 to 24 months. Integrated differential pressure gauges monitor filter restriction and notify operators when replacement elements are required.
Turnkey Extraction Package
Need a Custom Filtration Solution for Your Cutting Facility?
Talk directly with our CNC application engineers. We evaluate your plate schedule, workshop layout, and ambient air compliance goals to design a fully matched cutting and extraction cell.
