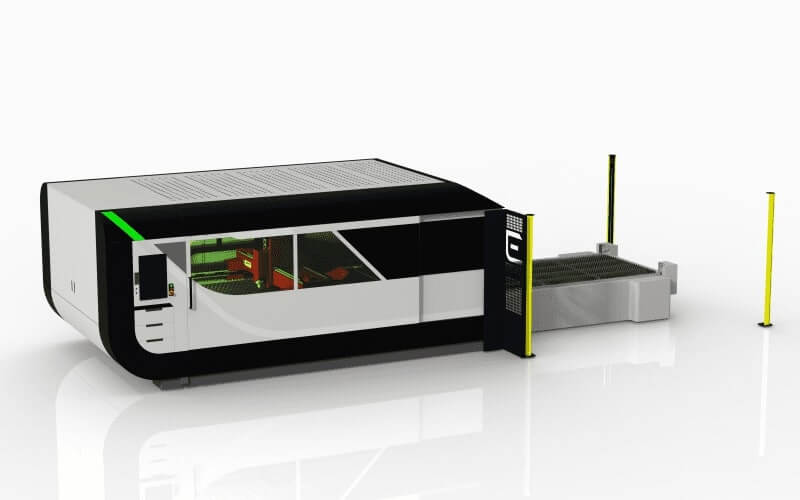

Photon 5G – Flagship High-Speed Laser
Engineered for maximum throughput in high-volume production. Reaches vector speeds of 325 m/min with 5g acceleration, direct-drive linear technology, and automated dual change-over shuttle tables.
British Precision Engineering
Industrial CNC Fiber Laser Cutters
Photon™ Series high-performance 2D laser cutting systems powered by IPG laser sources. Engineered for precision sheet metal fabrication and low operational costs worldwide.
Discuss your fiber laser cutting application with a senior engineering specialist
1kW–12kWIPG Fiber Laser Power Integration
A New Benchmark in Fiber Productivity
Engineered for Precision, Built for Continuous Production
As a leading UK manufacturer with over 35 years of CNC innovation, Esprit Automation produces industrial fiber laser cutting machines that combine aerospace-inspired gantry dynamics with smart CNC automation.
Every Photon™ machine is designed, assembled, and cut-tested in Nottingham, England. Engineered with high-efficiency motion drives and premium optics, our 2D fiber laser tables achieve positional accuracies of 50 microns while lowering monthly energy consumption and consumable wear.
- Simultaneous vector speeds up to 325 m/min with dynamic 5g acceleration
- Customizable machine handings to match your international factory footprint
- IPG Photonics laser sources tailored from 1kW up to 12kW output
- Class 1 fully enclosed safety housing with panoramic certified laser safety glass
Key Engineering Advantages
Why Global Fabricators Invest in Esprit Fiber Lasers
Our design philosophy focuses on maximizing arc-on cutting time, simplifying operator setup, and maintaining consistent accuracy across demanding production cycles.
5g Acceleration
Aerospace-inspired hybrid gantries enable ultra-fast directional changes without structural resonance.
LiveRegen™ Energy Recovery
Recovers kinetic energy during deceleration, reducing power consumption by up to 20%.
LiveNest™ & LiveControl™
Smart CNC interface allows instant remnant nesting and direct manual part insertion at the control panel.
LiveGuard™ Anti-Collision
Real-time capacitive sensor telemetry prevents torch collisions with tipped parts, protecting optics.

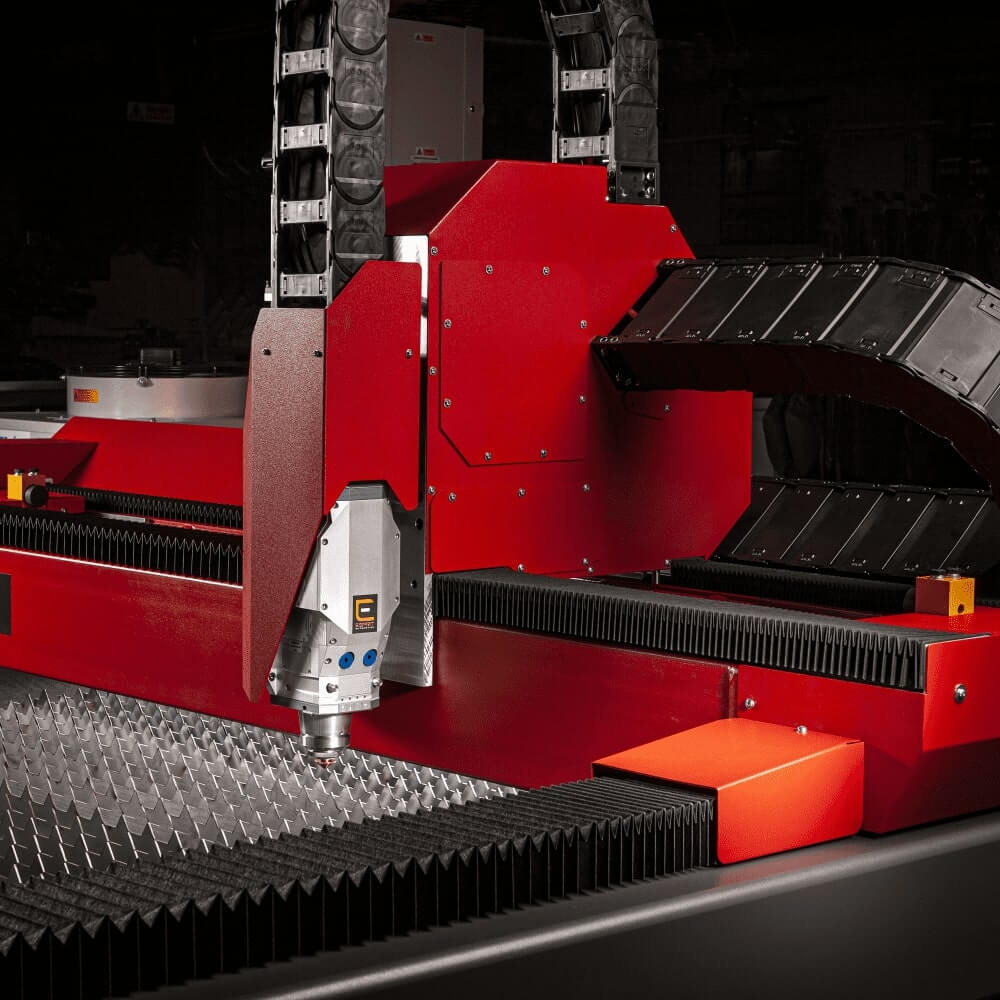

The Photon™ Range
Industrial 2D CNC Fiber Laser Models
Select the perfect machine footprint, laser power, and shuttle bed configuration for your workshop requirements.

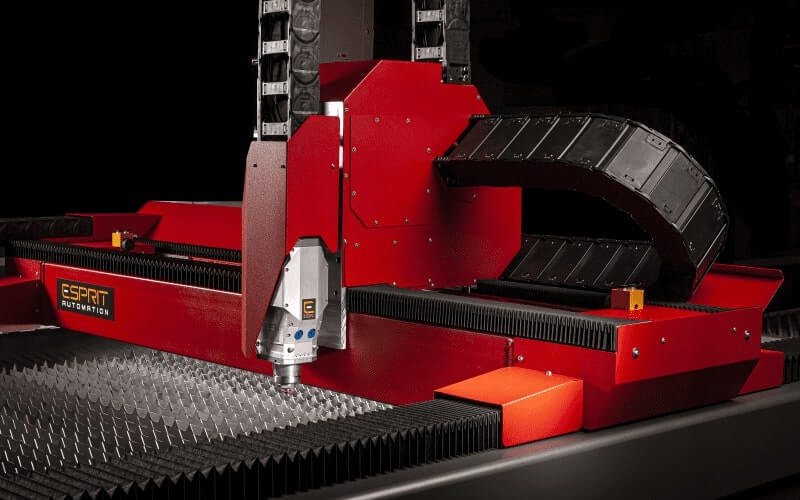

Photon One – High-Precision Production
The core workhorse for precision steel fabricators. Delivers 50-micron accuracy at vector speeds up to 170 m/min, combining robust structural stability with versatile sheet size options.

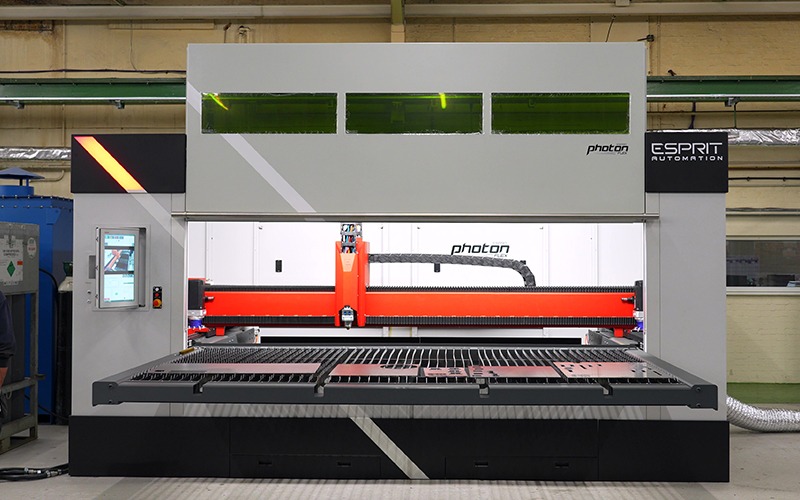

Photon FLEX – Space-Saving Efficiency
Designed for job shops and OEM facilities where floor space is premium. Features front-loading accessibility, low electrical overheads, and high-precision cutting performance.

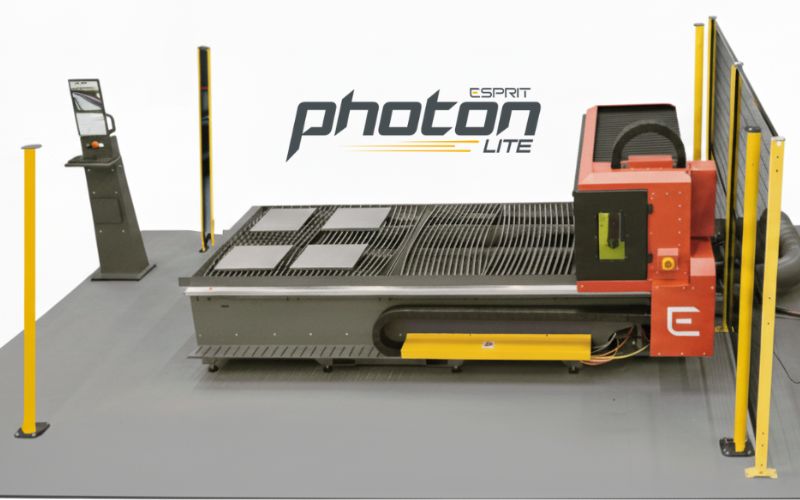

Photon LITE – Accessible Laser Technology
Brings on-demand fiber laser cutting in-house at a justifiable capital investment. Assembled in Nottingham using premium European motion control and laser delivery components.
Technical Benchmarks
Photon™ Series Specification Comparison
Compare motion dynamics, cutting envelopes, and hardware options across the Esprit fiber laser cutter lineup.
| Technical Feature | Photon 5G | Photon One | Photon FLEX | Photon LITE |
|---|---|---|---|---|
| Max Acceleration | 5 g | 2 g | 1 g | 1 g |
| Max Vector Velocity | 325 m/min | 170 m/min | 140 m/min | 120 m/min |
| Positional Accuracy | ±50 microns | ±50 microns | ±50 microns | ±60 microns |
| Max Working Envelope | 6000 x 2000 mm | 6000 x 2500 mm | 3000 x 1500 mm | 3000 x 1500 mm |
| Laser Power Options | 4 kW – 12 kW | 2 kW – 6 kW | 1 kW – 4 kW | 1.5 kW – 3 kW |
| IPG Laser Source Integration | Standard | Standard | Standard | Standard |
| Automatic Shuttle Table | Dual Synchronized | Dual Synchronized | Manual / Compact | Single Bed |
| CNC Handing Options | Left & Right Hand | Left & Right Hand | Left Hand | Right Hand |
| Regenerative Energy Recovery | Yes (LiveRegen™) | Yes (LiveRegen™) | Yes (LiveRegen™) | Optional |
World-Class Laser Integration
Powered by IPG Photonics YLS Fiber Laser Sources
Esprit partners directly with IPG Photonics—the global market leader in fiber laser technology—to equip each Photon table with solid-state laser generators engineered for maximum wall-plug efficiency and zero maintenance requirements.
- Superior beam quality for clean, burr-free edges on mild steel, stainless steel, aluminium, brass, and copper

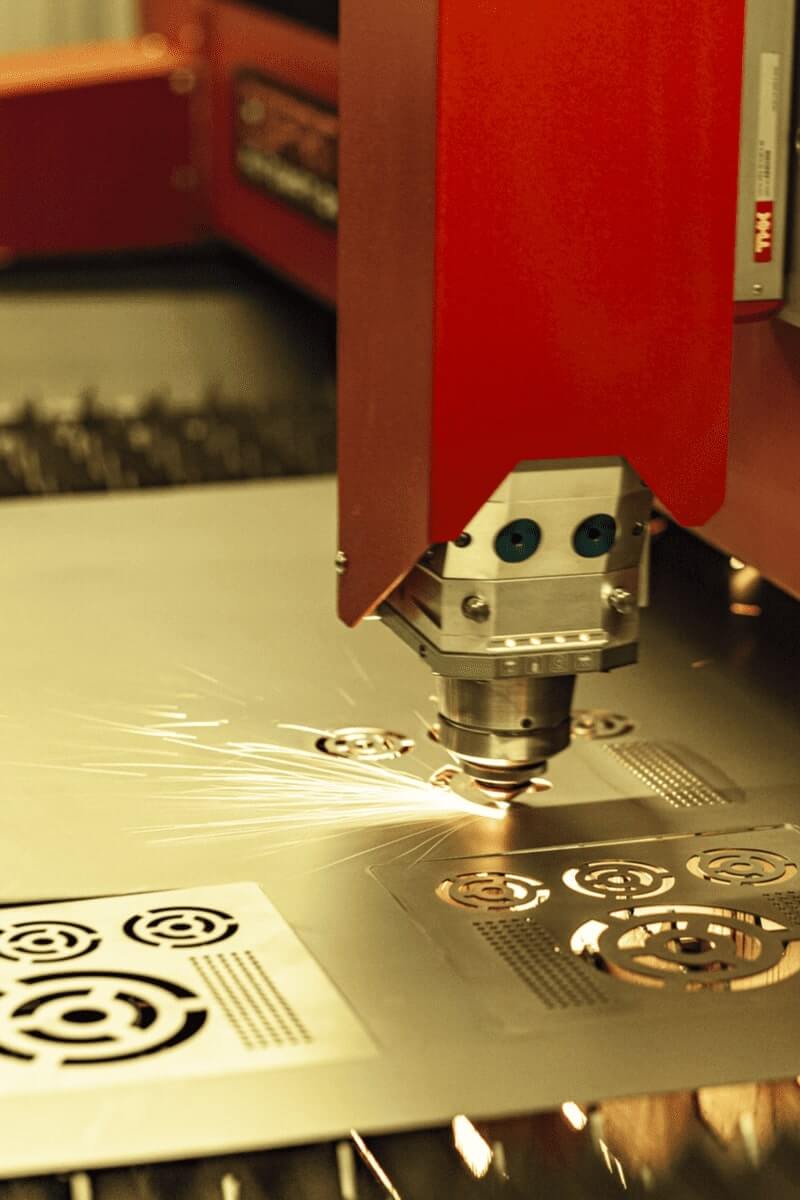

- Automated multi-chamber cutting head with motorized focus adjustment and anti-contamination optical cartage
- High electrical conversion efficiency exceeding 40%, slashing electrical grid overheads
- Full UK stock of replacement optical windows, nozzles, and ceramic protective rings for immediate international delivery
See It Cut
High-Speed Fiber Laser Precision in Action
Watch the Photon Series process complex geometries at extreme speeds while maintaining tight tolerances across sheet metal components.
Complete Production Cell
Software, Filtration & Global Support
Every machine is supplied as a fully integrated cutting cell backed by in-house CAD/CAM software development, compliant dust extraction, and lifelong engineering support.
ProCut CAD/CAM Software
In-house developed nesting software optimized for laser path generation, automatic common-line cutting, micro-jointing, and DXF/DWG import.
Industrial Fume Filtration
Zoned downdraft bed extraction matched with heavy-duty self-cleaning cartridge filter units to comply with global OSHA and HSE air quality standards.
Worldwide Remote Diagnostics
Integrated telemetry allows our employed UK field engineers to perform real-time CNC troubleshooting, parameter adjustments, and operator support overseas.
Expert Answers
Fiber Laser Cutting FAQs
Frequently asked questions from overseas fabricators and industrial buyers, answered by Esprit engineering team.
What laser power options are available for the Photon Series?
Our Photon fiber laser range offers laser power sources from 1kW up to 12kW supplied by IPG Photonics, allowing optimal configuration for thin sheet processing through to heavy plate cutting.
What vector speeds can Esprit fiber laser cutters achieve?
The flagship Photon 5G achieves industry-leading vector speeds up to 325 m/min with 5g acceleration, while maintaining a precise positional accuracy of 50 microns.
How does Esprit support international fiber laser machine installations?
All machines feature built-in remote telemetry and live diagnostic capabilities. Our employed UK engineers provide remote support, video guidance, and rapid worldwide dispatch of spare parts and consumables from Nottingham stock.
Are Esprit CNC fiber lasers compliant with international safety standards?
Yes, every Photon series machine features fully enclosed Class 1 laser safety protection with certified panoramic laser protection safety glass, zoned downdraft fume extraction interlocks, and CE compliance.
Can I request custom machine dimensions for my workshop layout?
Yes. We manufacture machine beds to accommodate standard sheet sizes (e.g., 3000 x 1500 mm, 4000 x 2000 mm, 6000 x 2500 mm) as well as offer left-hand or right-hand CNC console placement to optimize your facility workflow.
Global Consultation & Quotes
Request a Fiber Laser Solution Quote
Share your target materials, plate thickness, and cutting volume requirements. Our applications engineers will provide a detailed technical recommendation, cycle time calculation, and cost-per-part analysis.
Direct Engineering Contact: +44 (0)115 939 1888 · Plackett Mill, Church Drive, Sandiacre, Nottingham NG10 5EE, UK
