Authorized Hypertherm OEM Integration for High-Precision Metal Fabrication
Esprit Automation is a principal UK OEM partner for Hypertherm, the worldwide leader in plasma cutting technology. By combining Hypertherm's industry-defining X-Definition and air plasma power sources with our heavy-duty CNC gantries, we deliver reliable, high-productivity cutting cells engineered for international steel fabricators and service centres.
Every Hypertherm power source supplied by Esprit is natively integrated into our machines. From automatic gas console regulation and CNC torch height control to fully embedded True Hole process parameters, our systems optimize cut quality and torch consumable longevity straight out of the crate.
Hypertherm Plasma Power Sources & Specifications
Compare Hypertherm high-definition XPR, MAXPRO, and Powermax plasma systems to select the exact power output, cut capacity, and process capabilities for your plate schedule.
| Plasma System | Technology Class | Production Pierce (Mild Steel) | Max Severance | Key Features & Best-Fit Applications |
|---|---|---|---|---|

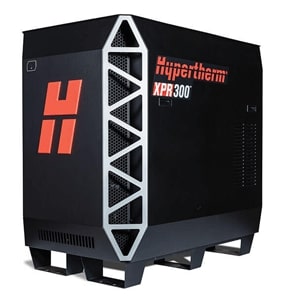

| Hypertherm XPR460® | X-Definition® High-Definition | 50 mm (2.0 in) | 80 mm (3.15 in) | Broadest cutting capability, maximum thickness, VWI gas mixing, structural steel, heavy plate cutting. |
| Hypertherm XPR300® | X-Definition® High-Definition | 45 mm (1.75 in) | 80 mm (3.15 in) | Superior edge squareness, rapid cut speeds on mild steel, stainless & aluminium, True Hole technology. |
| Hypertherm XPR170® | X-Definition® High-Definition | 38 mm (1.5 in) | 70 mm (2.75 in) | OptiLight guiding, laser-like precision on thin to mid-gauge plate, low cost per cut metre. |

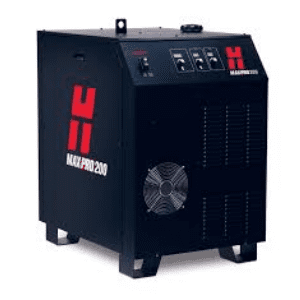

| Hypertherm MAXPRO200® | Heavy-Duty Air Plasma | 32 mm (1.25 in) | 50 mm (2.0 in) | Cost-effective oxygen and air plasma system, high reliability for general steel fabrication and plate service centers. |
| Hypertherm Powermax125® | Conventional Air Plasma | 25 mm (1.0 in) | 57 mm (2.25 in) | Compact power source for sheet metal cutting, HVAC ductwork, prototype shops, and light industrial manufacturing. |
Integrated Hypertherm Technologies for Maximum Uptime
By pairing Hypertherm hardware with Esprit CNC control software and robust gantry frames, overseas buyers gain access to advanced cut automation technologies that deliver consistent profit margin on every profile.
True Hole® Automation
Hypertherm True Hole technology automatically adjusts gas mix, arc current, and motion speed to produce bolt-ready 1:1 diameter-to-thickness holes without manual operator intervention.
VWI™ Gas Control
Vented Water Injection technology on XPR systems uses hydrogen gas mixing and water misting to produce mirror-like cut edges on stainless steel and non-ferrous alloys.
ArcGlide® Height Control
Precise arc voltage height tracking protects torch components from plate collisions, maintains optimal cut height, and extends consumable shield life up to three times longer.
Consumable Life Protection
Automatic ramp-down of plasma current and process gas flows prevents sudden torch blowouts during rapid pierce cycles, reducing operating consumable costs per part.

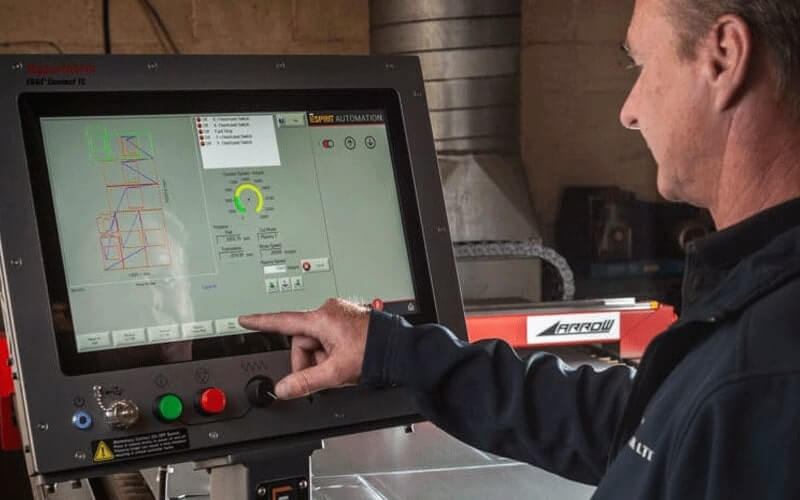

EDGE® Connect CNC Controller
Factory-loaded cut charts dynamically match amperage, gas pressure, feed rates, and pierce timing directly to your drawing nested files.
Remote CNC Diagnostics
Integrated internet diagnostics allow Esprit UK support engineers to analyze plasma arc logs, controller parameters, and gas values remotely across international time zones.
Global Export, Factory Testing & Technical Support
Purchasing an industrial plasma cutting machine for overseas operations requires confidence in system reliability, component availability, and engineering support. At Esprit Automation, every Hypertherm-equipped machine undergoes rigorous cut quality verification and electrical load testing at our Nottingham factory prior to international shipment.
- Fully certified export packaging, seaworthy crating, and international voltage configuration.
- Direct access to genuine Hypertherm nozzles, electrodes, swirl rings, and retaining caps from extensive UK stock.
- Comprehensive operator training and remote video support delivered by certified engineers.
- Machines operating in over 30 countries across Europe, the Middle East, Asia, and the Americas.
Hypertherm Plasma System Questions Answered
Hypertherm X-Definition plasma technology (featured in the XPR series) delivers unmatched cut quality on mild steel, stainless steel, and aluminium. It produces square edge cuts, minimal dross, and smooth cut surfaces approaching laser quality at significantly lower operating costs. Advanced process control and automatic gas regulation also substantially extend consumable life.
As an official Hypertherm OEM partner with over 35 years of experience, Esprit Automation integrates Hypertherm power sources directly with precision CNC controllers, ArcGlide height controls, and custom gantry mechanics. This guarantees optimized signal response, seamless True Hole technology deployment, and reliable machine performance.
The Hypertherm XPR300 and XPR460 systems offer production piercing capability up to 45 mm and 50 mm respectively on mild steel, with maximum severance capacity well beyond that. Paired with Esprit heavy-duty CNC plasma gantries, these systems are ideal for steel service centres and heavy fabrication plants.
Yes. Esprit Automation manufactures machines to international electrical and safety standards, exporting complete CNC plasma cutting solutions to over 30 countries worldwide. Full export packaging, remote CNC diagnostic setup, and overseas commissioning support are provided.
