Lightning HD
The flagship high-definition plasma cutter offering laser-like edge finish, square cut angles, and bolt-hole quality cut performance at a fraction of fiber laser investment.
Precision Metal Cutting Solutions
Industrial-Grade CNC Plasma Cutters
Engineered in Nottingham, England since 1986, Esprit CNC plasma cutting machines combine heavy-duty welded gantry frames, high-precision linear guides, and state-of-the-art Hypertherm plasma technology to deliver maximum productivity and lowest cost-per-cut.
Flexible Range
Frame-based, rail-based, and specialised bevel cut solutions tailored to your exact sheet and plate dimensions.
Heavy Structural Rigidity
Stress-relieved welded steel construction engineered to endure continuous 24/7 industrial fabrication environments.
Hypertherm OEM OEM Partner
Integrated with Hypertherm XPR, HPRXD power sources, and EDGE Connect CNC controllers for benchmark cutting speeds.
Global Field Support
Direct manufacturer support, remote diagnostic capabilities, and rapid worldwide despatch of genuine consumables.
Gantry Architecture
Frame-Based CNC Plasma Cutters
Integral frame construction pairing high-dynamic drive acceleration with downdraft smoke extraction tables for workshop-friendly footprint and optimum cutting cleanliness.

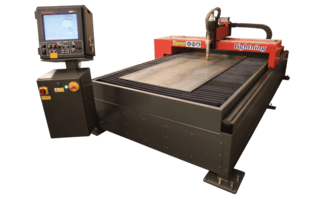

Lightning D
Designed to handle diverse sheet and plate processing work schedules, producing highly consistent parts across mild steel, stainless steel, and structural aluminium alloys.

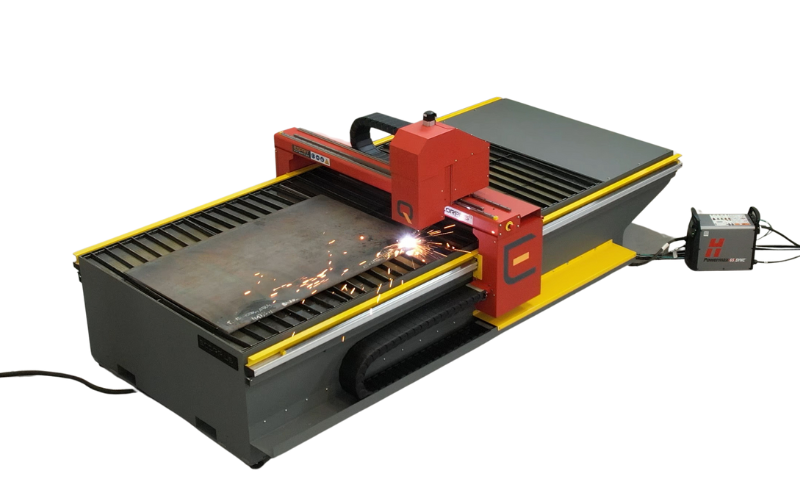

Scorpius
Combines heavy industrial machine gantry rigidity with a compact footprint, delivering reliable high-speed sheet cutting for expanding fabrication workshops.

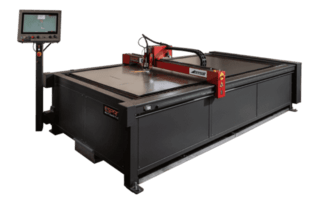

Arrow
A specialized CNC plasma cutting system built for HVAC ductwork manufacturers, sheet metal fabricators, and fast prototyping work handling thin gauge sheets.
Heavy Plate Processing
Rail-Based CNC Plasma Cutters
Engineered for large-format steel service centres and heavy structural profiling. Independent track rails permit unlimited cutting lengths and multi-carriage configurations.

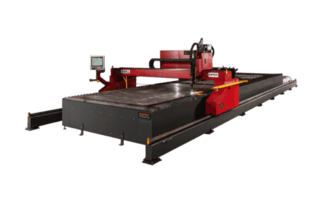

Viper
The workhorse CNC plasma machine for round-the-clock plate profiling. Accommodates heavy plate thicknesses and can be combined with oxy-fuel flame cutting heads.

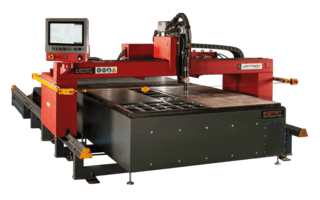

Lightning S
Features an innovative linked-rail concept for maximum structural stiffness, ensuring superior torch position repeatability across wide track spans.

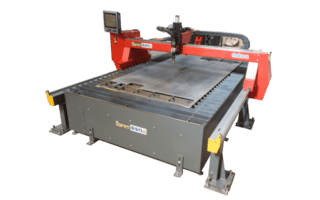

Cobra
Cost-effective heavy-duty rail machine capable of operating multiple high-definition plasma torches alongside oxy-fuel cutting stations on a single gantry.
Advanced Weld Prep Technology
Multibevel 5-Axis Plasma Bevel Cutter
Eliminate manual edge grinding and secondary machining operations. The Esprit Multibevel head provides fully automated 5-axis plasma bevel cutting for structural steel, pressure vessel components, and heavy fabrication.
- V, A, Y, X, and K bevel profile capability up to ±50°
- Automated height control with initial height sensing and torch collision prevention
- Seamlessly integrated with ProCut nesting software for automatic bevel programming
- Powered by Hypertherm XPR460 for maximum speed on heavy plate beveling
Technical Capability Overview
CNC Plasma Machine Specifications
Compare key cutting capacities and engineering parameters across the Esprit plasma cutter product matrix.
| Machine Model | Machine Type | Cutting Width | Max Thickness (Mild Steel) | Plasma Power Source Options | Primary Application |
|---|---|---|---|---|---|
| Lightning HD | Frame / Gantry | 1.5 m – 3.0 m | Up to 80 mm | Hypertherm XPR170 / XPR300 / XPR460 | High-Precision Profile Cutting |
| Viper | Rail-Based Track | 2.0 m – 6.0+ m | Up to 80 mm (Plasma) / 300 mm (Flame) | Hypertherm XPR / HPRXD / MAXPRO | Heavy Fabrication & Steel Service Centres |
| Lightning D | Frame / Gantry | 1.5 m – 2.5 m | Up to 50 mm | Hypertherm XPR170 / MAXPRO200 | General Engineering Fabrication |
| Scorpius | Compact Frame | 1.5 m – 2.0 m | Up to 32 mm | Hypertherm Sync / MAXPRO200 | Compact Workshop & Job Shop Cutting |
| Arrow | Sheet Metal Frame | 1.5 m – 2.0 m | Up to 15 mm | Hypertherm Powermax / MAXPRO | HVAC Ductwork & Light Sheet Fabrication |
| Multibevel | 5-Axis Bevel Gantry | 2.0 m – 5.0 m | Up to 50 mm Bevel Angle | Hypertherm XPR300 / XPR460 | Weld Preparation & Structural Beveling |
Principal Hypertherm OEM Partner
World-Class Power Source & Motion Control
As the UK's leading Hypertherm OEM partner, Esprit does not treat the plasma unit as an accessory. Cut charts, gas console automation, torch height control (THC), and gantry motion are deeply integrated inside the Hypertherm EDGE Connect CNC control interface.
This ensures published cutting speed, hole quality (True Hole® technology), and bevel reduction metrics are consistently achieved on your shop floor from day one.
Complete Ownership Assurance
Global Support & Lifetime Technical Service
Buying from overseas? Esprit supports CNC plasma installations in over 30 countries with dedicated application engineers, full component traceability, and rapid export dispatch.
Turnkey Implementation
Complete system delivery including correctly matched industrial downdraft fume filtration, CAD/CAM nesting software, post-processors, and operator training manuals.
Remote CNC Diagnostics
Onboard network connectivity allows Esprit software developers and diagnostics engineers to troubleshoot cut parameters and CNC settings remotely anywhere in the world.
Consumables Stock Guarantee
Massive inventory of genuine Hypertherm plasma electrodes, nozzles, shields, and swirl rings kept in stock at our UK headquarters for same-day dispatch.
Buying Guidance
Frequently Asked Questions
What thickness steel can Esprit CNC plasma machines cut?
Equipped with Hypertherm XPR, HPR, or MAXPRO power sources, Esprit CNC plasma cutters pierce and cut mild steel, stainless steel, and aluminium plate from 1 mm up to 80 mm with clean edge finish and minimal dross. Severance capacity extends beyond 80 mm.
Why choose High-Definition plasma cutting over conventional plasma?
High-Definition plasma technology (such as Hypertherm XPR) delivers significantly tighter edge tolerances, reduced bevel angles, smoother cut faces, and patented True Hole technology. It yields near-laser quality cuts on plate thicknesses from 3 mm to 50 mm at substantially lower operational costs.
How are machine exports outside the United Kingdom supported?
Esprit machines operate in over 30 export destinations. We provide international buyers with remote diagnostics built into the EDGE Connect CNC controller, video technical assistance, detailed maintenance documentation, and global air-freight dispatch of replacement parts and consumables directly from our Nottingham warehouse.
Is industrial fume extraction included with the cutting table?
Yes. Every Esprit table features integrated multi-zone downdraft extraction chambers. We match and supply industrial dry dust collectors and fume filtration units sized specifically to comply with international workplace clean air and safety standards.
